Awm 1032 90º C 1000V/1200V Electric Wire and Cable Lead Wire Single Conductor Wire with UL Certificate

Name: Awm 1032 90º C 1000V1200V Electric Wire and Cable Lead Wire Single Conductor Wire with UL Certificate
Brand: XSD Cable
Price: 1 USD

Quality Awm 1032 90º C 1000V/1200V Electric Wire and Cable Lead Wire Single Conductor Wire with UL Certificate wholesale

Brand Name : XSD Cable

Model Number : Single Conductor Wire

Place of Origin : Guangdong,China

Certification : UL,CE,ISO:9001

MOQ : 3050Meters

Price : Negotiate

Packaging Details : 31*31*15CM

Delivery Time : 7-30days

Payment Terms : T/T

Supply Ability : 1000000Meter/month

Range of Application : Electronic and Electrical Equipment and Appliance

Rated Temperature : 90°C

Rating Voltage : 1000V/1200V

Flame Test : VW-1 & FT1

Standard : UL758, UL1581, CSA C22.2 No.210

Transport Package : Rolls or as Required

Contact Now

Product Description:

AWM 1032 90ºC 1000V/1200V Electric Wire and Cable Lead Wire Single Conductor Wire with UL Certificate
-Rated temperature: 90ºC
-Rated voltage: 1000V/1200V
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & CSA FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance.

Awm 1032 90º C 1000V/1200V Electric Wire and Cable Lead Wire Single Conductor Wire with UL Certificate

Technical Parameters:

Attribute	Value
Product Name	Single Conductor Wire
Ul Certification	2468
Application	General Purpose
Rated Temperature	80°C
Stranding	Solid
Ul Style	2468
Color	Black
Conductor Strand	Solid
Conductor Size	18 AWG
Conductor	Copper
Temperature Rating	90°C

Conductor			Insulation		Max. Cond Resistance at 20°C (Ω/km)
AWG	Construction (No./mm)	Diameter (mm)	Thickness (mm)	Diameter (mm)	Max. Cond Resistance at 20°C (Ω/km)
26	7/0.16	0.48	0.26	1.00	150
24	7/0.20	0.60	0.26	1.12	94.2
22	17/0.16	0.76	0.26	1.28	59.4
20	26/0.16	0.94	0.26	1.46	36.7
18	16/0.254	1.18	0.27	1.70	23.2
16	26/0.254	1.49	0.41	2.31	14.6
14	41/0.254	1.87	0.41	2.70	8.96
12	65/0.254	2.36	0.60	3.56	5.64
10	66/0.32	3.00	0.60	4.20	3.55

Dongguan XSD Cable Technology Co., Ltd (subsidiary of Shenzhen Singder Insulation Materials Co., Ltd) is a Chinese professional manufacturer with "ISO9001, IATF16949, UL, cUL, CCC" approved in Dongguan city next to Shenzhen and Guangzhou.

★Main Products: UL/cUL AWM Wires&Cables, Automotive Wire, Industrial Wire, Hook-up&Lead Wire, Solar Cable(PV Wire), Heating Wire, FFC Wire, Flat Ribbon Cable, BV, RV, BVR, RVV, RVB, AVVR, RVVP, USB Cable, HDMI, DVI, VGA, Cable Assembly, Wire Harness and so on.

★Insulation Materials: PVC/PE/XLPE/LSZH/TEFLON/FEP/SILICONE RUBBER/TPU and so on.

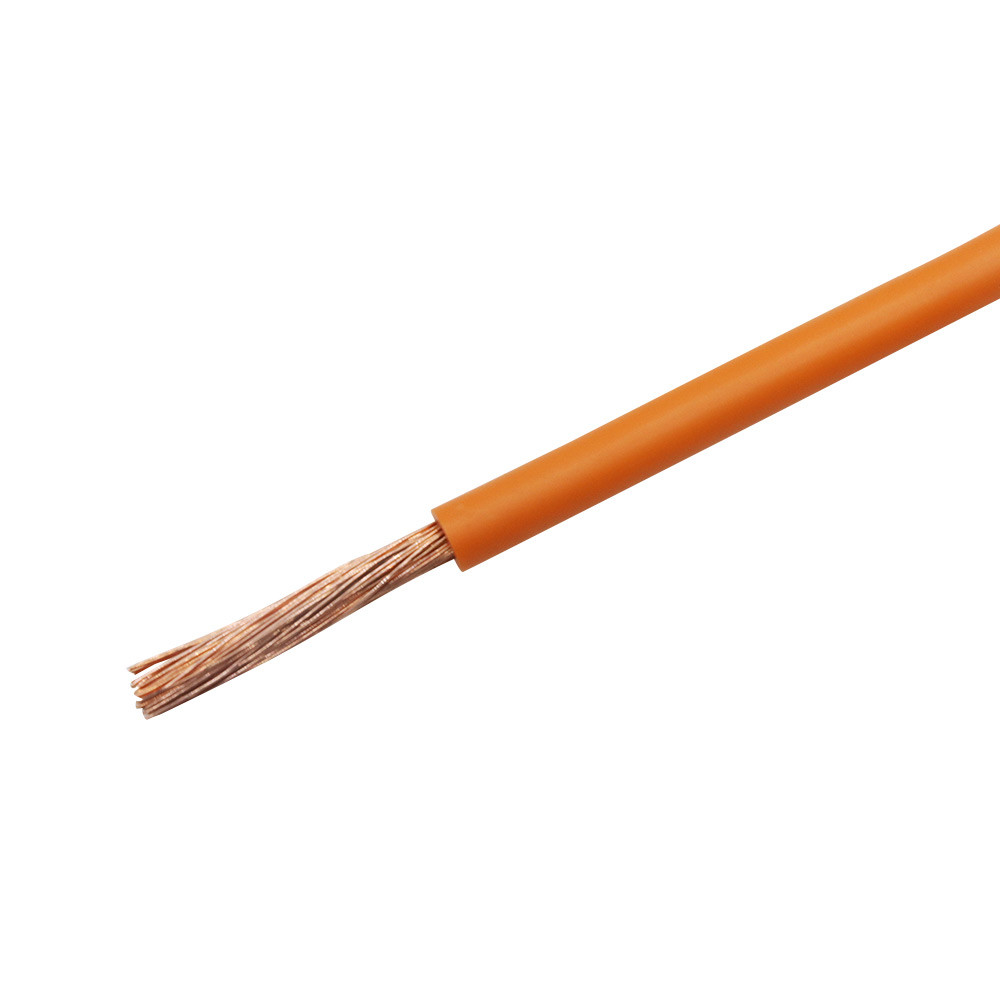

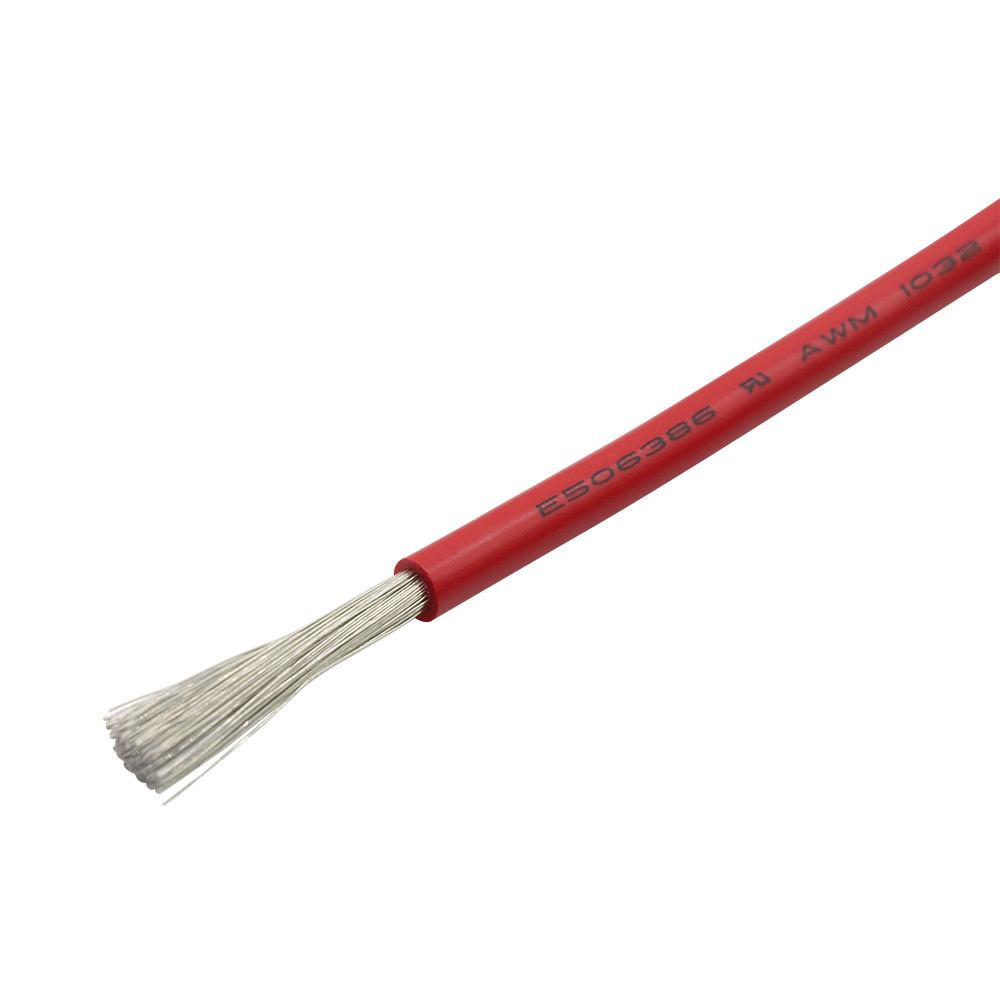

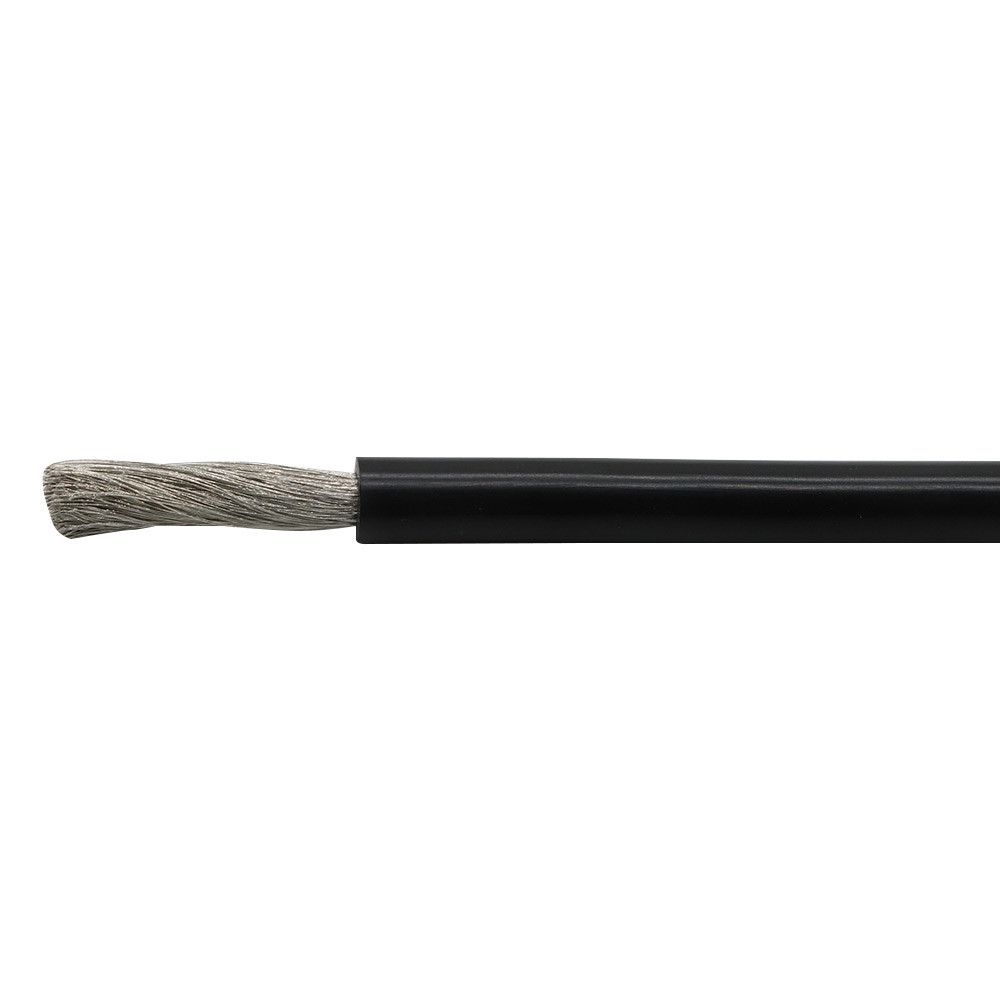

Awm 1032 90º C 1000V/1200V Electric Wire and Cable Lead Wire Single Conductor Wire with UL Certificate Images
